Connect SQL Server

To connect a Microsoft SQL Server database to NQRust Analytics, enter the connection details, select your tables, and define the relationships between them.

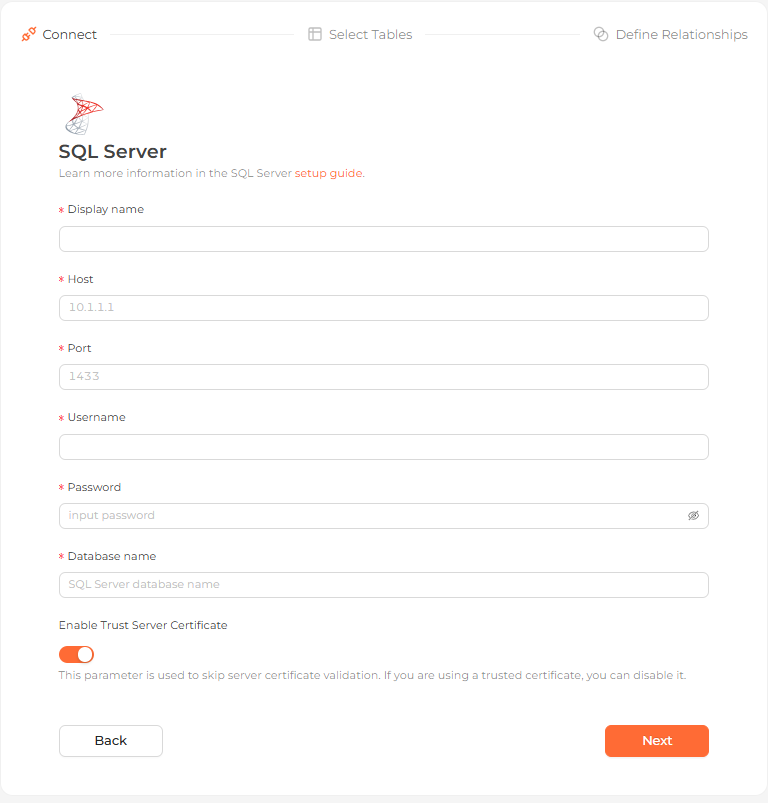

The SQL Server connection form in the Analytics UI

Connection settings

Field	Description
Display name	(required) The name this database shows up as in the Analytics UI.
Host	(required) Your SQL Server database's IP address or hostname, e.g. `10.1.1.1`.
Port	(required) The port your SQL Server database listens on, e.g. `1433`.
Username	(required) The account used to access the database.
Password	(required) That account's password.
Database name	(required) The name of the database you want to connect to.
Enable Trust Server Certificate	(optional) Toggle that skips server certificate validation. On by default. If you use a trusted certificate, you can disable it.

Running SQL Server locally on macOS or Windows? Use host.docker.internal as the host so the container can reach your machine.

Steps

Enter connection details

Select the SQL Server option in the data source section, complete the settings above, and continue.

Select tables

Choose the tables you want to work with. Each table becomes a data model.

Selecting the tables to import as data models

Define relationships

Connect your tables using their primary and foreign keys, or add the relationships manually. You can also skip this step and configure it later.

Defining relationships between the imported tables

Start exploring

Your tables now appear on the Modeling page. Open the Home page and ask questions about your data in natural language.

Asking a question about the connected data on the Home page
