Connect MySQL
Connect a MySQL database to NQRust Analytics.
Connecting MySQL to NQRust Analytics involves three stages: provide the connection settings, select your tables, and define their relationships.

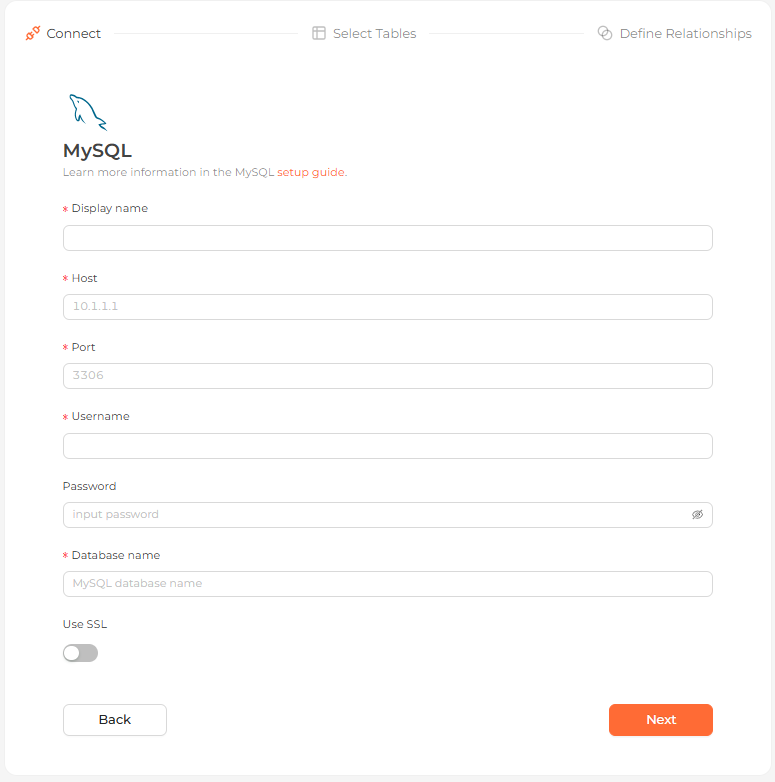

The MySQL connection form in the Analytics UI
Only MySQL 8.0 and later is supported.
Connection settings
| Field | Description |
|---|---|
| Display name | (required) The name this database shows up as in the Analytics UI. |
| Host | (required) The MySQL server's IP address or hostname, e.g. 10.1.1.1. |
| Port | (required) The port the server listens on, e.g. 3306. |
| Username | (required) The database account used to authenticate. |
| Password | (optional) That account's password. |
| Database name | (required) The specific database to connect to. |
| Use SSL | (optional) Toggle SSL on for the connection. Off by default. |
Running MySQL locally on macOS or Windows? Use host.docker.internal as the
host so the container can reach your machine.
Steps
Enter connection details
Complete the fields above and click Next.
Select tables
Choose which tables from your MySQL database to import. Each selected table becomes a data model.
Selecting the tables to import as data modelsDefine relationships
Link tables together by specifying:
- From — the source table and column
- To — the target table and column
- Relationship type — the kind of relationship between them
NQRust Analytics proposes relationships based on your primary and foreign keys. You can add relationships manually or skip the step entirely.
Defining relationships between the imported tablesStart exploring
Your tables now appear on the Modeling page. Open the Home page and ask questions about your data in natural language.
Asking a question about the connected data on the Home page
