Connect Oracle
Connect an Oracle Database to NQRust Analytics.
Only Oracle Database 23ai and later is supported. Check your version before connecting.

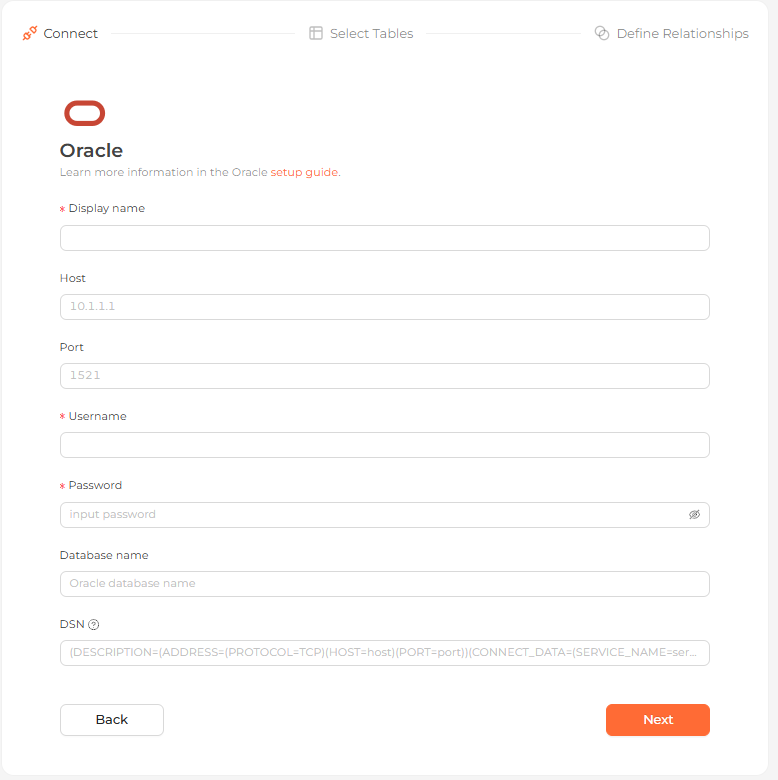

The Oracle connection form in the Analytics UI
Required permissions
The Oracle account you connect with needs these privileges:
SELECTon the tables and views you queryCREATE VIEWDROP VIEW
These privileges allow NQRust Analytics to create temporary views during query execution. The views always use unique, system-generated names, so they will not conflict with or overwrite your existing views.
Connection settings
| Field | Description |
|---|---|
| Display name | (required) The name this database shows up as in the Analytics UI. |
| Host | (optional) The Oracle database's IP address or hostname, e.g. 10.1.1.1. |
| Port | (optional) The database port, e.g. 1521. |
| Username | (required) The account used to access the database. |
| Password | (required) That account's password. |
| Database name | (optional) The service name or SID to connect to. |
| DSN | (optional) A full Oracle connect descriptor, e.g. (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=host)(PORT=port))(CONNECT_DATA=(SERVICE_NAME=service))). |
Running Oracle locally on macOS or Windows? Use host.docker.internal as the
host so the container can reach your machine.
Steps
Enter connection details
Select Oracle from the data source options, then connect either by filling in the Host, Port, and Database name, or by providing a DSN. Click Next to test the connection.
Select tables
Choose the tables you want from the list. Each table becomes a data model.
Selecting the tables to import as data modelsDefine relationships
Define how your tables relate, or skip this step and configure it later.
Defining relationships between the imported tablesStart exploring
Your tables now appear on the Modeling page. Open the Home page and ask questions about your data in natural language.
Asking a question about the connected data on the Home page
